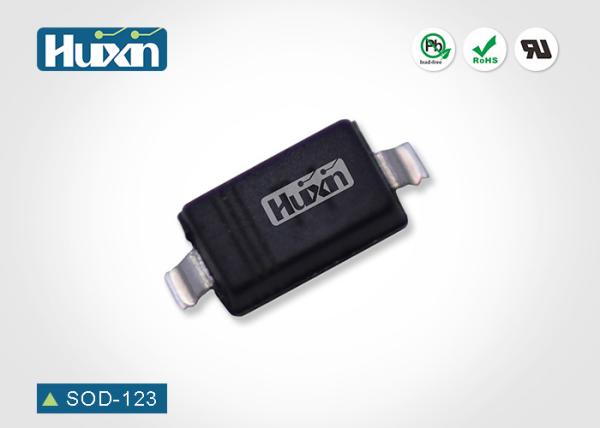

Ultra-Small Surface Mount SOD-123 Package 7.5V Zener Diode
7.5 V Zener Diode SOD123 Diode Package Ultra Small Surface Mount
MMSZ5221B-MMSZ5259B SOD-123 Datasheet.pdf
Features:
- Planar Die Construction
- Ultra-Small Surface Mount Package
- General purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
Maximum Ratings and Characteristics ( Ta=25℃ unless otherwise specified)
| Parameter | Symbol | Value | Unit |
| Forward Voltage at IF =10mA (Note 2) | VF | 0.9 | V |
| Power Dissipation ( Note 1) | Pd | 350 | mW |
| Thermal Resistance from Junction to Ambient Air | RthA | 357 | ℃/W |
Notes:1.Device mounted on ceramic PCB;
2.Tested with pulses, Tp≤1.0ms
Five Core Advantages:
1.Ensure excellent quality products with professional technology
Focusing on R & D and manufacturing of semi- conductor devices for years with abundant experience and unique professional technology;
Owning 100,000 square meters factory and equipping the international advanced automation equipments and testing equipments;
SGS Test passed, and all products complying with RoHS and REACH 1907/2010/EC48 criteria
2.Providing efficient and convenient services
Management center is in southern China, providing customers with efficient and convenient services for import and export.
3.Purchasing without worry due to the help of technical guidance center
Providing real-time purchasing assistant, and offering the best procurement project for customers in less than 30 minutes after requests;
Free FAQ helping you to choose the most appropriate products and save your money;
Providing free sample for any product and free technical support for customers
4.Non-standard product development and production available
Customizing special products to meet clients' needs with professional R & D team;
More than 30 auto-production lines and be able to launch temporary production line, providing customers with volume production of non-standard products
5.Continuous and stable supply, on time delivery
Owing more than a thousand types of products with of billion annual production capacity;
Adopting efficient ERP management system, guaranteeing the order be processed within 15 minutes;
Keeping strategically cooperative relationship with SF Express, DHL, UPS, EMS, etc., ensuring products delivered in the fastest way.
