1A Silicon Schottky Barrier Rectifier Diode SS16 DO-214AC/SMA Low Reverse Leakage

Guangdong Huixin Electronics Technology Co., Ltd.
Contact Now

1A Silicon Schottky Barrier Rectifier Diode SS16 DO-214AC/SMA Low Reverse Leakage

  • 1
  • 2
  • 3

Brand Name : Huixin

Model Number : SS16 SMA

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 5000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 5000pcs/reel/box

Type : Silicon Schottky Rectifier Diodes

Package : SMA

Package Type : Surface Mount Diode

Sample Time : 5-7 Days

Max. Forward Current : 1A

Max. Reverse Voltage : 60V

Material : Silicon

Mounting position : Any

IFSM : 30A

VF : 0.7V

Contact Now

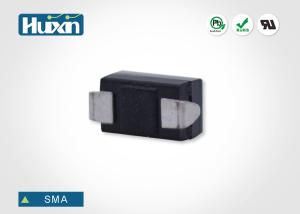

SS16 DO-214AC/SMA 1A Silicon Schottky Rectifier

1A Silicon Schottky Barrier Rectifier Diode SS16 DO-214AC/SMA Low Reverse Leakage

SS12~SS120 SMA Datasheet.pdf

Features:

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • For surface mounted applications
  • Low reverse leakage
  • Built-in strain relief,ideal for automated placement
  • High forward surge current capability
  • High temperature soldering guaranteed
  • 250 C/10 seconds at terminals

Mechanical Data:

  • Case : JEDEC SMA Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end
  • Mounting Position : Any
  • Weight : 0.0023 ounce, 0.07 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS

SS12

SS14 SS16 SS18 SS110 SS115 SS120 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 20 40 60 80 100 150 200 Volts
Maximum RMS Voltage VRMS

14

28 42 56 70 105 140 Volts
Maximum DC Blocking Voltage VDC 20 40 60 80 100 150 200 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV) 1 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 30 Amps
Maximum Instantaneous Forward Voltage at 1.0A VF

0.55

0.7 0.85 0.95 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR 0.5 0.05 mA
TA=125°C 50 10
