SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD

Name: SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD
Brand: Huixin
Price: 1 USD

Brand Name : Huixin

Model Number : SS36 SMB

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 3000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 3000pcs/reel/box

Type : 3 Ampere SMD Schottky Diode

Package : SMB

Package Type : Surface Mount Diode

Sample Time : 5-7 Days

Max. Forward Current : 3A

Max. Reverse Voltage : 60V

Material : Silicon

Mounting position : Any

IFSM : 100A

VF : 0.7V

Contact Now

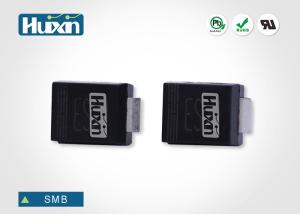

SS36 SMB 60 Voltage 3 Ampere SMD Schottky Diode

SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD

SS32~SS320 SMB Datasheet.pdf

Features:

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed
250 C/10 seconds at terminals

Mechanical Data:

Case : JEDEC DO-214AA (SMB) Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Color band denotes cathode end
Mounting Position : Any
Weight : 0.0035 ounce, 0.098 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter		SYMBOLS	SS32	SS34	SS36	SS38	SS310	SS315	SS320	UNITS

Maximum Repetitive Peak Reverse Voltage		VRRM	20	40	60	80	100	150	200	Volts
Maximum RMS Voltage		VRMS	14	28	42	56	70	105	140	Volts
Maximum DC Blocking Voltage		VDC	20	40	60	80	100	150	200	Volts
Maximum Average Forward Rectifier Current at TL=100°C		IF(AV)	3							Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load		IFSM	100							Amps
Maximum Instantaneous Forward Voltage at 3.0A		VF	0.55		0.7	0.85		0.95		Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	0.5			0.05				mA
	TA=125°C		50			10
