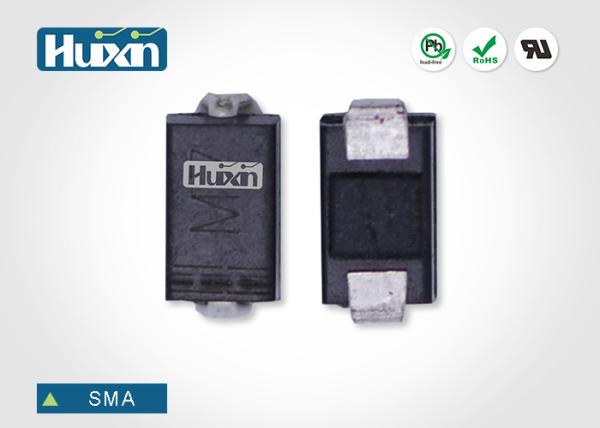

75ns Silicon Diode Rectifier For Power Supply ES1J SMA 600 Voltage

Name: 75ns Silicon Diode Rectifier For Power Supply ES1J SMA 600 Voltage
Brand: Huixin
Price: 1 USD

China 75ns Silicon Diode Rectifier For Power Supply ES1J SMA 600 Voltage factory

Brand Name : Huixin

Model Number : ES1J DO - 214AC (SMA)

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 5000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 5000pcs/reel/box

Type : Silicon 600 Voltage Recovery Diodes

Package : SMA

Package Type : Surface Mounted Diode

Sample Time : 5-7 Days

Max. Forward Current : 1A

Max. Reverse Voltage : 600V

Trr : 75ns

VF : 1.7V

Contact Now

ES1J SMA 600 Voltage Fast Recovery Rectifiers For Power Supply

75ns Silicon Diode Rectifier For Power Supply ES1J SMA 600 Voltage

ES1A~ES1J SMA Datasheet.pdf

Features:

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Idea for printed circuit board
Glass passivated Junction chip
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed

Mechanical Data:

Case : Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 0.0023 ounce, 0.07 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter		SYMBOLS	ES1A	ES1B	ES1D	ES1G	ES1AJ	ES1K	ES1M	UNITS

Maximum Repetitive Peak Reverse Voltage		VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage		VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage		VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectifier Current at TL=100°C		IF(AV)	1							Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load		IFSM	30							Amps
Maximum Instantaneous Forward Voltage at 1A		VF	1			1.4	1.7			Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	5							μA
	TA=125°C		500
Maximum Reverse Recovery Time( Note 1)		Trr	35							ns

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
