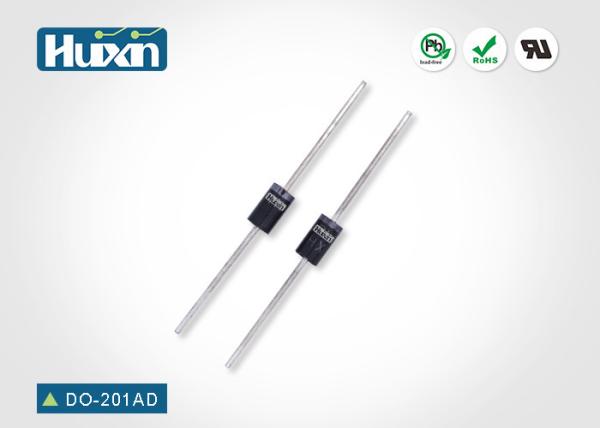

300V 5A 50ns 2-Pin DO-201AD Ultra Fast Switching Diode

Name: 300V 5A 50ns 2Pin DO201AD Ultra Fast Switching Diode
Brand: Huixin
Price: 1 USD

Brand Name : Huixin

Model Number : HER504 DO-27

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 1250 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 1000pcs/reel/box

Type : Ultra Fast Switching Diode

Package : DO-201AD/ DO-27

Package Type : DIP

MPQ : 1250PCS

Sample Time : 5-7 Days

Max. Forward Current : 5A

Max. Reverse Voltage : 300V

Product Name : Rectifier Diode Switching 300V 5A 50ns 2-Pin DO-201AD Ultra Fast Switching Diode

Contact Now

Rectifier Diode Switching 300V 5A 50ns 2-Pin DO-201AD Ultra Fast Switching Diode

HER501~HER508
5.0Amp High Efficiency Silicon Rectifiers

5.0amp High Efficient Rectifiers Voltage Range: 50 To 1000 Volts

HER501~HER508 DO-27 Datasheet.pdf

Features:

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Open Junction chip Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed 250 C/10 seconds at terminals

Mechanical Data:

Case : Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 0.0345 ounce, 0.98 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter	SYMBOLS	HER 501	HER 502	HER 503	HER 504	HER 505	HER 506	HER 507	HER 508	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	600	800	1000	V
Maximum RMS voltage	VRMS	35	70	140	210	280	420	560	700	V
Maximum DC blocking voltage	VDC	50	100	200	300	400	600	800	1000	V
Maximum average forward rectified current at TL =100 C	I(AV)	5.0								A
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load	IFSM	175.0								A
Maximum instantaneous forward voltage at 5.0A	VF	1.0				1.4	1.7			V
Maximum DC reverse current T A =25 C at rated DC blocking voltage TA=125 C	IR	5.0 200								u A
Maxinum reverse recovery time(Note 1)	Trr	50					75			ns
Typical junction capacitance (Note2)	CJ	80.0								pF
Typical thermal resistance	RqJA	45.0								C/W
Operating junction and storage temperature range	TJ,TSTG	-55 to +150								C

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
